Experiments

In the Simulation Datamodel vocabulary, a numerical Experiment produces or post-processes scientific data. It can be of two types :

Simulation (using SimulationCode as Protocols),

PostProcessingRun (using PostProcessingCode as Protocols).

Any Experiment contains a set of AppliedAlgorithm and a set of ParameterSetting. In addition, a Simulation contains a set of ResolvedPhysicalProcess :

A strict binding is enforced between :

an Experiment’s ParameterSetting and its Protocol’s InputParameter,

an Experiment’s AppliedAlgorithm and its Protocol’s Algorithm,

a Simulation’s ResolvedPhysicalProcess and its SimulationCode’s PhysicalProcess.

For more details, see Strict protocol/experiment bindings.

Simulation

To define a Simulation, only two attributes are mandatory :

name : a non-empty string value,

simu_code : a SimulationCode instance, (used to initialize the Simulation.simulation_code property).

a Simulation has an execution_time property that can be set to any string-formatted datetime following the %Y-%m-%d %H:%M:%S format.

Here is a more complete example of a Simulation initialization with all optional attributes :

>>> from astrophysix.simdm.protocol import SimulationCode
>>> from astrophysix.simdm.experiment import Simulation
>>>
>>> enzo = SimulationCode(name="", code_name="ENZO", code_version="2.6", alias="ENZO_26,
...                       url="https://enzo-project.org/",
...                       description="This is a fair description of the ENZO AMR code")
>>> simu = Simulation(simu_code=enzo, name="Cosmological simulation",
...                   alias="SIMU_A", description="Simu description",
...                   execution_time="2020-09-15 16:25:12",
...                   directory_path="/path/to/my/project/simulation/data/")

Warning

Setting the Simulation.alias property is necessary only if you wish to upload your study on the Galactica simulation database. See Why an alias ? and How can I check validity for Galactica ?

Post-processing run

Once a Simulation has been defined, you can add a PostProcessingRun into it, to initialize one, only two attributes are mandatory :

name : a non-empty string value,

ppcode : a PostProcessingCode instance, (used to initialize the PostProcessingRun.postpro_code property).

Here is a more complete example of how to initialize a PostProcessingRun with all optional attributes and add it into a Simulation :

>>> from astrophysix.simdm.protocol import PostProcessingCode
>>> from astrophysix.simdm.experiment import PostProcessingRun
>>>
>>> hop = PostProcessingCode(name="Hop", code_name="HOP")
>>> pprun = PostProcessingRun(name="Overdense structure detection", ppcode=hop,
...                           alias="HOP_DETECTION"
...                           description="This is the description of my HOP post-processing " \
...                                       "run to detect overdense gas structures in " \
...                                       "the star-forming ISM.",
...                           directory_path="/path/to/my/hop_catalogs")
>>> simu.post_processing_runs.add(pprun)

Warning

Setting the PostProcessingRun.alias property is necessary only if you wish to upload your study on the Galactica simulation database. See Why an alias ? and How can I check validity for Galactica ?

Parameter settings

To define the value you used for an input parameter of your code in a given Simulation (or PostProcessingRun), you can define a ParameterSetting. To do so, you must :

make a reference to the associated code InputParameter : input_param attribute,
give a value (float, int, string, bool) : value attribute,
Optionally, you can set a visibility flag : ParameterVisibility (default to BASIC_DISPLAY), only used by the Galactica web app., for display purposes.

Available parameter setting visibility options are :

Finally, use the parameter_settings property to add it into your run. Here is an example :

>>> from astrophysix.simdm.experiment import ParameterSetting
>>>
>>> set_levelmin = ParameterSetting(input_param=ramses.input_parameters['Lmin'],
...                                 value=8,
...                                 visibility=ParameterVisibility.ADVANCED_DISPLAY)
>>> simu.parameter_settings.add(set_levelmin)
>>> set_levelmax = simu.parameter_settings.add(ParameterSetting(input_param=lmax,
...                                                             value=12))

Warning

A ParameterSetting is strictly bound to its Experiment’s Protocol’s InputParameter instance, see Strict protocol/experiment bindings for details.

Optionally, you can attach a configuration file containing all the parameter settings of any Simulation (or PostProcessingRun), using the configuration_file property :

>>> import os
>>> from astrophysix.simdm.datafiles.file import YamlFile, JsonFile, AsciiFile
>>>
>>> # Set an ASCII configuration file to the simulation
>>> ini_cfg_filepath = os.path.join("/proj", "runs", "config_MHD_3D.ini")
>>> simu.configuration_file = AsciiFile.load_file(ini_cfg_filepath)
>>>
>>> # Reset configuration file => remove the ASCII file from astrophysix study.
>>> simu.configuration_file = None

For more details, see Attached files.

Warning

Only configuration file of type JSON_FILE, YAML_FILE or ASCII_FILE are accepted.

Applied algorithms

To define which algorithms were enabled in a given simulation (or post-processing) run and what were their implementation details, you can define a AppliedAlgorithm. To do so, you must :

make a reference to the associated code Algorithm : algorithm attribute,
optionally provide an implementation details (string) : details attribute.

Finally, use the applied_algorithms property to add it into your run. Here is an example :

>>> from astrophysix.simdm.experiment import AppliedAlgorithm
>>>
>>> app_amr = AppliedAlgorithm(algorithm=ramses.algorithms[AlgoType.AdaptiveMeshRefinement.name],
...                            details="Fully threaded tree AMR implementation [Teyssier 2002].")
>>> ramses_simu.applied_algorithms.add(app_amr)

Warning

A AppliedAlgorithm is strictly bound to its Experiment’s Protocol’s Algorithm instance, see Strict protocol/experiment bindings for details.

Resolved physical processes (for Simulation only)

To define which physical processes were resolved in a given simulation run and what were their implementation details, you can define a ResolvedPhysicalProcess. To do so, you must :

make a reference to the associated SimulationCode’s PhysicalProcess : physics attribute,
optionally provide an implementation details (string) : details attribute.

Finally, use the resolved_physics property to add it into your run. Here is an example :

 >>> from astrophysix.simdm.experiment import ResolvedPhysicalProcess
 >>>
 >>> res_sf = ResolvedPhysicalProcess(physics=ramses.physical_processes[Physics.StarFormation.name],
 ...                                  details="Star formation specific implementation")
 >>> simu.resolved_physics.add(res_sf)
 >>> res_sgrav = ResolvedPhysicalProcess(physics=ramses.physical_processes[Physics.SelfGravity.name],
                                         details="Self-gravity implementation (gas + particles)"))
>>> simu.resolved_physics.add(res_sgrav)

Warning

A ResolvedPhysicalProcess is strictly bound to its Simulation’s SimulationCode’s PhysicalProcess instance, see Strict protocol/experiment bindings for details.

Parametric studies

New in version 0.7.0.

In some use cases, a large number of numerical experiments are conducted to explore a multi-dimensional parameter space. You can define which input parameters are part of your parameter space exploration to enhance the simulation list display on your Galactica project page.

This way, your simulations will be displayed in a sortable datatable with pagination functionality if the number of simulations is too large.

For example, a project where pure hydro and MHD runs are executed with different values of some parameter \(\beta\) and \(\gamma\) :

>>> from astrophysix.simdm import Project
>>> from astrophysix.simdm.protocol import SimulationCode
>>> from astrophysix.simdm.protocol import InputParameter
>>>
>>> proj = Project(category="COSMOLOGY", project_title="Project Epsilon",
...                alias="EPSILON")
>>> dyablo = SimulationCode(name="Dyablo 1.0", code_name="DYABLO",
...                         alias="DYABLO_CODE")
>>> # Add input parameters
>>> used_mhd_solver = InputParameter(key="with_mhd", name="MHD solver used",
...                                  description="Pure hydro or MHD run ?")
>>> dyablo.input_parameters.add(used_mhd_solver)
>>> beta = InputParameter(key="beta", name="$\\beta$",
...                       description="$\\beta$ parameter")
>>> dyablo.input_parameters.add(beta)
>>> gamma = InputParameter(key="gamma", name="$\gamma$",
...                       description="$\gamma$ parameter")
>>> dyablo.input_parameters.add(gamma)

with several simulations included in the project, each one with a different set of parameter values :

>>> from astrophysix.simdm.experiment import ParameterSetting
>>> from astrophysix.simdm.experiment import Simulation
>>>
>>> # Define parameter settings in the parameter space
>>> use_hydro = ParameterSetting(input_param=used_mhd_solver, value=False)
>>> use_mhd = ParameterSetting(input_param=used_mhd_solver, value=True)
>>> beta_001 = ParameterSetting(input_param=beta, value=1.0)
>>> beta_010 = ParameterSetting(input_param=beta, value=10.0)
>>> beta_100 = ParameterSetting(input_param=beta, value=100.0)
>>> beta_250 = ParameterSetting(input_param=beta, value=250.0)
>>> gamma_001 = ParameterSetting(input_param=gamma, value=0.1)
>>> gamma_010 = ParameterSetting(input_param=gamma, value=1.0)
>>> gamma_050 = ParameterSetting(input_param=gamma, value=5.0)
>>> gamma_100 = ParameterSetting(input_param=gamma, value=10.0)

>>> num_simu = 1
>>> # Add simulations with defined parameter settings in the project
>>> for solver in [use_hydro, use_mhd]:
...     for bval in [beta_001, beta_010, beta_100, beta_250]:
...         for gval in [gamma_001, gamma_010, gamma_050, gamma_100]:
...             simu_name = "Simulation #{i:d}".format(i=num_simu)
...             s = Simulation(dyablo, name=simu_name,
...                            alias="SIMU_{i:d}".format(i=num_simu))
...             s.parameter_settings.add(solver)
...             s.parameter_settings.add(bval)
...             s.parameter_settings.add(gval)
...             proj.simulations.add(s)
...
...             num_simu += 1

You can then insert the corresponding input parameters of your parametric study in the simu_datatable_params parameter of your Project :

>>> # Add input parameters in project simulation datatable parameter list
>>> proj.simu_datatable_params.add(used_mhd_solver)
>>> proj.simu_datatable_params.add(beta)
>>> proj.simu_datatable_params.add(gamma)

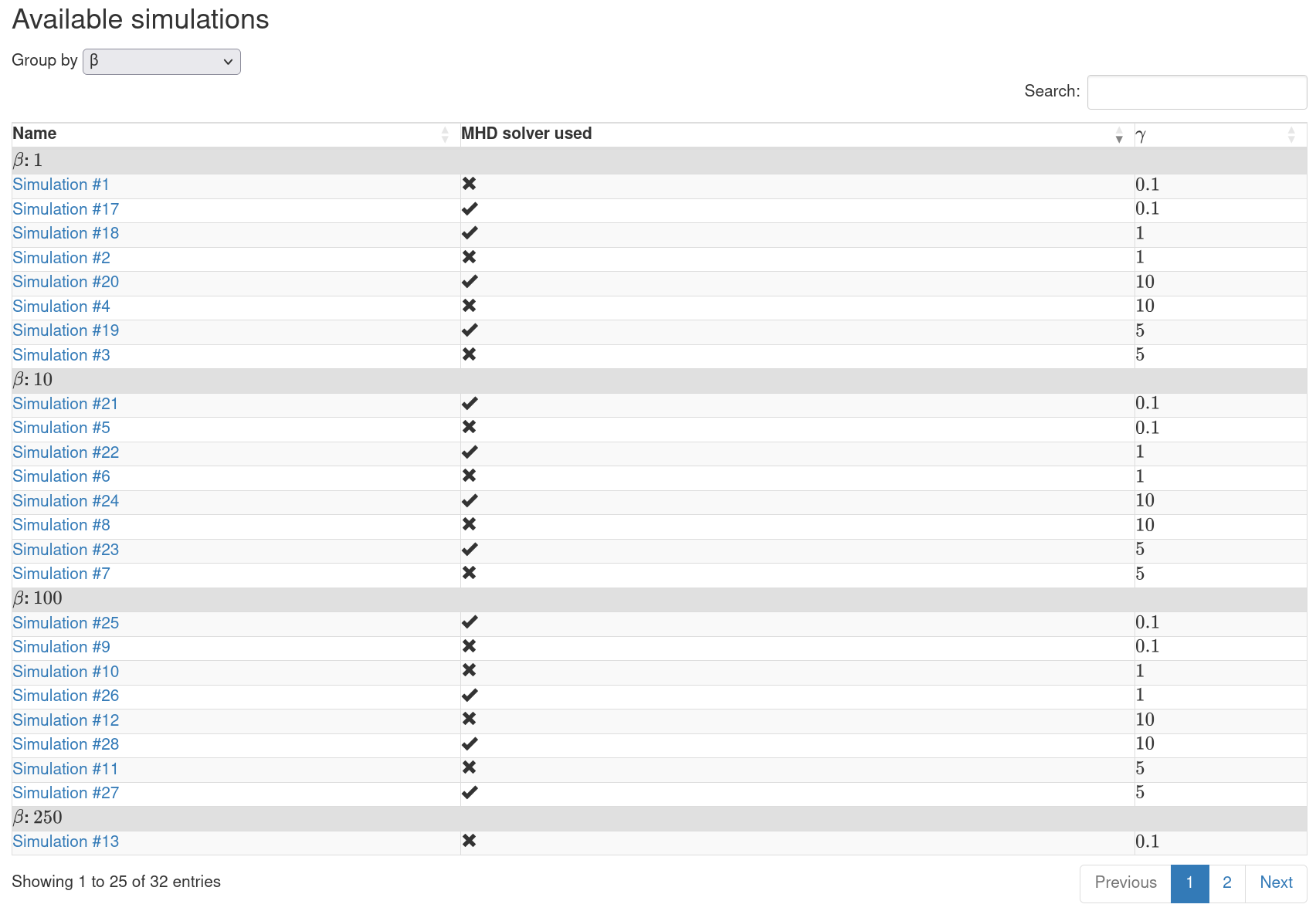

When this project is uploaded on Galactica, the list of simulations appear as a datatable :

Strict protocol/experiment bindings

When you manipulate Experiment class objects (Simulation or PostProcessingRun) and Protocol class objects (SimulationCode or PostProcessingCode) and when you link objects together, astrophysix makes sure for you that your entire study hierarchical structure remains consistent at all times :

upon object creation,
upon object addition into another object,
upon object deletion from another object.

Upon object creation

You are free to create any kind of astrophysix object, even those linked to another object :

>>> from astrophysix.simdm.protocol import InputParameter
>>> from astrophysix.simdm.experiment import ParameterSetting
>>>
>>> lmin = InputParameter(key="levelmin", name="Lmin", description="min. level of AMR refinement"))
>>> set_levelmin = ParameterSetting(input_param=lmin, value=9))

There is no risk of breaking your study hierarchical structure consistency.

Upon object addition

To avoid dangling references into the study hierarchical structure, astrophysix will prevent you from :

Adding a ParameterSetting object into the parameter_settings list of an Experiment if its associated InputParameter does not already belong to the Experiment’s Protocol’s input_parameters list,
Adding a AppliedAlgorithm object into the applied_algorithms list of an Experiment if its associated Algorithm does not already belong to the Experiment’s Protocol’s algorithms list,
Adding a ResolvedPhysicalProcess object into the resolved_physics list of a Simulation if its associated PhysicalProcess does not already belong to the Simulation’s SimulationCode’s physical_processes list.

I know it is a bit convoluted, let’s see an example :

>>> from astrophysix.simdm.protocol import SimulationCode, InputParameter, Algorithm, \
                                           PhysicalProcess, AlgoType, Physics
>>> from astrophysix.simdm.experiment import Simulation, ParameterSetting, \
                                             AppliedAlgorithm, ResolvedPhysicalProcess
>>>
>>> amr_code = SimulationCode(name="My AMR code", code_name="Proto_AMR")
>>> simu = Simulation(simu_code=amr_code, name="My test run")

>>> # ------------------- Input parameters ------------------------------
>>> lmin = InputParameter(key="levelmin", name="Lmin")
>>> set_levelmin = ParameterSetting(input_param=lmin, value=9)
>>> simu.parameter_settings.add(set_levelmin) # => Error
AttributeError: Simulation '[Lmin = 9] parameter setting' does not refer
to one of the input parameters of '[My AMR code] simulation code'.
>>>
>>> # Add first the input parameter into the code,
>>> amr_code.input_parameters.add(lmin)
>>> # THEN add the parameter setting into the simulation.
>>> simu.parameter_settings.add(set_levelmin) # => Ok
>>> # -------------------------------------------------------------------
>>>
>>> # ------------------- Applied algorithms ----------------------------
>>> amr_algo = Algorithm(algo_type=AlgoType.AdaptiveMeshRefinement)
>>> app_amr = AppliedAlgorithm(algorithm=amr_algo)
>>> simu.applied_algorithms.add(app_amr) # Error
AttributeError: Simulation '[Adaptive mesh refinement] applied algorithm'
does not refer to one of the algorithms of '[My AMR code] simulation code'.
>>>
>>> # Add first the algorithm into the code
>>> amr_code.algorithms.add(amr_algo)
>>> # THEN add the applied algorithm  into the simulation
>>> simu.applied_algorithms.add(app_amr)
>>> # -------------------------------------------------------------------
>>>
>>> # ---------------- Resolved physical processes ----------------------
>>> sf_process = PhysicalProcess(physics=Physics.StarFormation)
>>> res_sf = ResolvedPhysicalProcess(physics=sf_process)
>>> simu.resolved_physics.add(res_sf) # Error
AttributeError: Simulation '[Star formation] resolved physical process'
does not refer to one of the physical processes of '[My AMR code] simulation code'.
>>>
>>> # Add first the physical process into the code
>>> amr_code.physical_processes.add(sf_process)
>>> # THEN add the resolved physical process into the simulation
>>> simu.resolved_physics.add(res_sf)
>>> # -------------------------------------------------------------------

Upon object deletion

To avoid missing references into the study hierarchical structure, astrophysix will also prevent you from :

Deleting a InputParameter object from a Protocol’s input_parameters list if any Experiment associated to that Protocol contains a ParameterSetting that refers to the input parameter to be deleted,
Deleting a Algorithm object from a Protocol’s algorithms list if any Experiment’s associated to that Protocol contains a AppliedAlgorithm that refers to the algorithm to be deleted,
Deleting a PhysicalProcess object from a SimulationCode’s physical_processes list if any Simulation associated to that SimulationCode contains a ResolvedPhysicalProcess that refers to the physical process to be deleted.

I know it is a bit convoluted, let’s see an example :

>>> from astrophysix.simdm.protocol import SimulationCode, InputParameter, Algorithm, \
                                           PhysicalProcess, AlgoType, Physics
>>> from astrophysix.simdm.experiment import Simulation, ParameterSetting, \
                                             AppliedAlgorithm, ResolvedPhysicalProcess
>>> amr_code = SimulationCode(name="My AMR code", code_name="Proto_AMR")
>>> simu = Simulation(simu_code=amr_code, name="My test run")
>>>
>>> # ------------------- Input parameters ------------------------------
>>> lmin = InputParameter(key="levelmin", name="Lmin")
>>> amr_code.input_parameters.add(lmin)
>>> set_levelmin = ParameterSetting(input_param=lmin, value=9)
>>> simu.parameter_settings.add(set_levelmin)
>>> del amr_code.input_parameters[lmin]
AttributeError: '[levelmin] 'Lmin' input parameter' cannot be deleted, the following items depend
on it (try to delete them first) : ['My test run' simulation [Lmin = 9] parameter setting].
>>>
>>> # Delete the parameter setting from the simulation first,
>>> del simu.parameter_settings[set_levelmin]
>>> # THEN delete the input parameter from the code.
>>> del amr_code.input_parameters[lmin] # => Ok
>>> # -------------------------------------------------------------------
>>>
>>> # ------------------- Applied algorithms ----------------------------
>>> amr_algo = Algortihm(algo_type=AlgoType.AdaptiveMeshRefinement)
>>> amr_code.algorithms.add(amr_algo)
>>> app_amr = AppliedAlgorithm(algorithm=amr_algo)
>>> simu.applied_algorithms.add(app_amr)
>>> del amr_code.algorithms[amr_algo]
AttributeError: ''Adaptive mesh refinement' algorithm' cannot be deleted, the following items depend
on it (try to delete them first) : ['My test run' simulation [Adaptive mesh refinement] applied algorithm].
>>>
>>> # Delete the applied algorithm from the simulation first,
>>> del simu.applied_algorithms[app_amr]
>>> # THEN delete the algorithms from the code
>>> del amr_code.algorithms[amr_algo] # => Ok
>>>
>>> # -------------------------------------------------------------------
>>>
>>> # ---------------- Resolved physical processes ----------------------
>>> sf_process = PhysicalProcess(physics=Physics.StarFormation)
>>> amr_code.physical_processes.add(sf_process)
>>> res_sf = ResolvedPhysicalProcess(physics=sf_process)
>>> simu.resolved_physics.add(res_sf)
>>> del amr_code.physical_processes[sf_process]
AttributeError: ''Star formation' physical process' cannot be deleted, the following items depend
on it (try to delete them first) : ['My test run' simulation [Star formation] resolved physical process].
>>>
>>> # Delete the resolved physical process from the simulation first
>>> del simu.resolved_physics[res_sf]
>>> # THEN delete the physical process from the code
>>> del amr_code.physical_processes[sf_process] # => Ok
>>> # -------------------------------------------------------------------
